Product Introduction

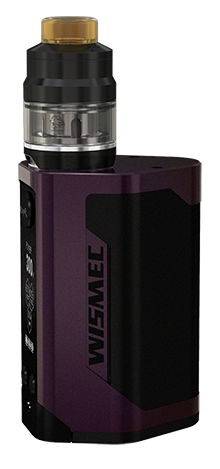

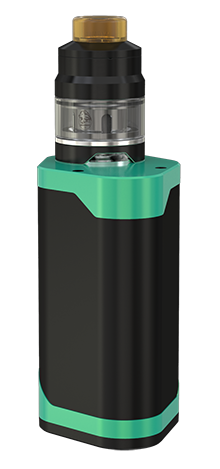

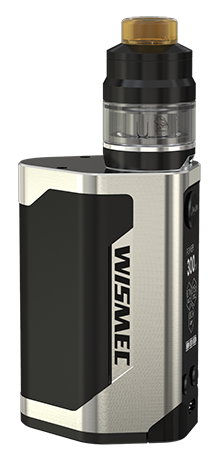

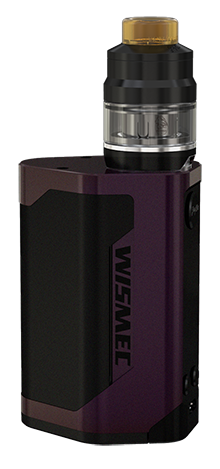

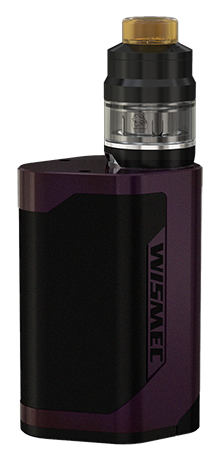

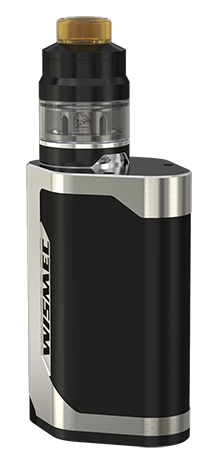

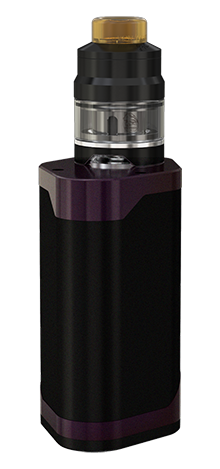

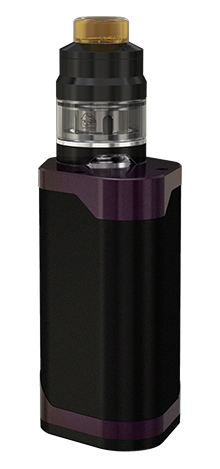

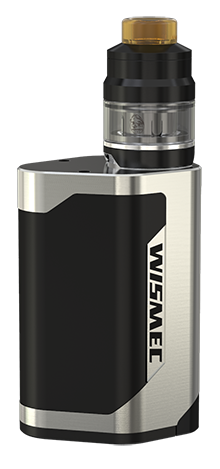

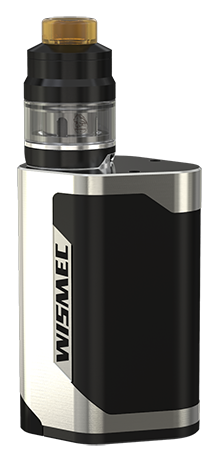

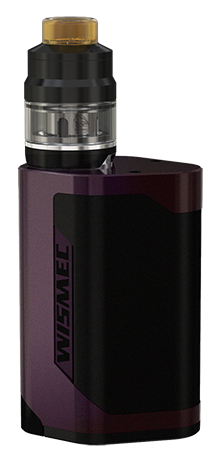

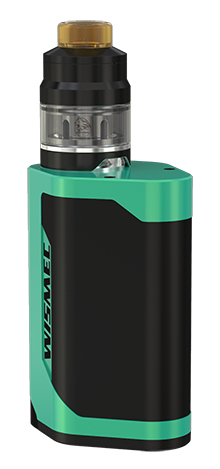

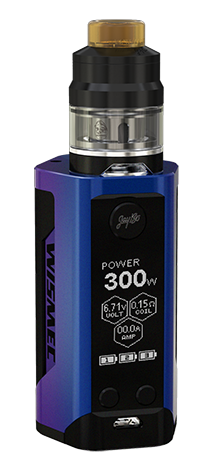

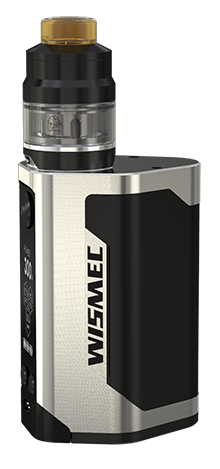

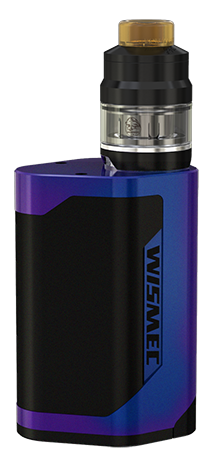

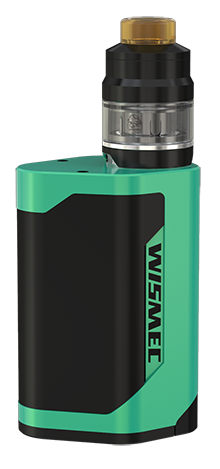

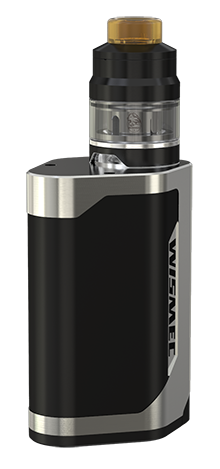

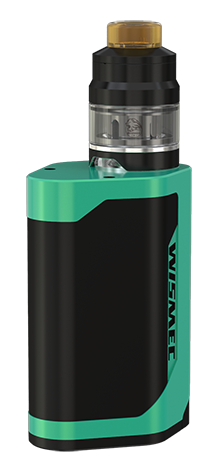

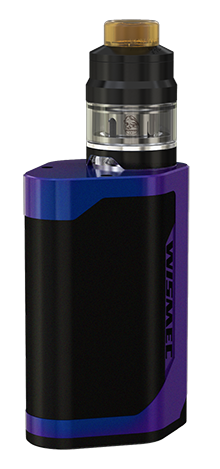

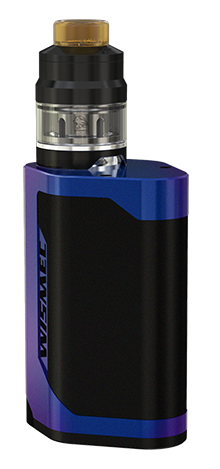

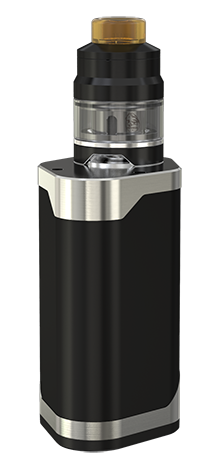

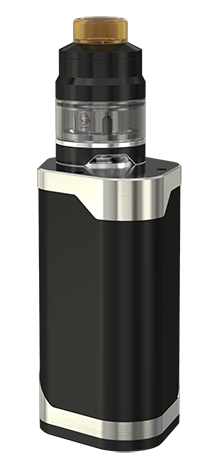

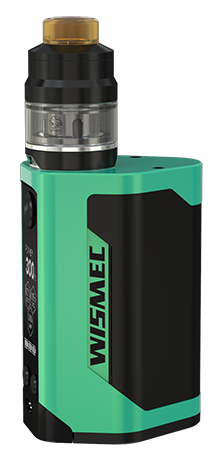

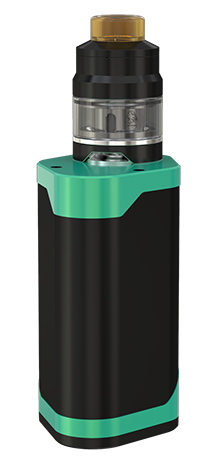

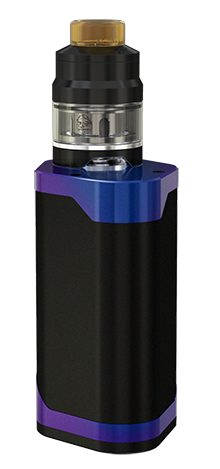

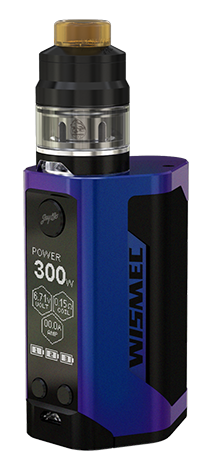

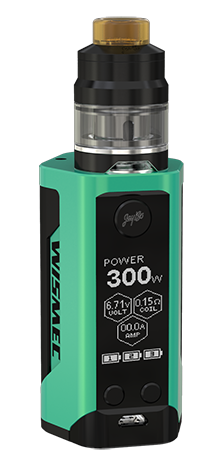

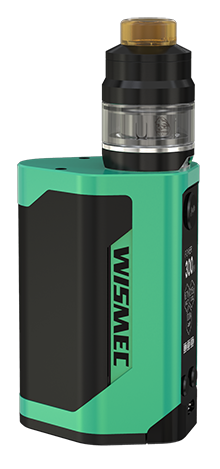

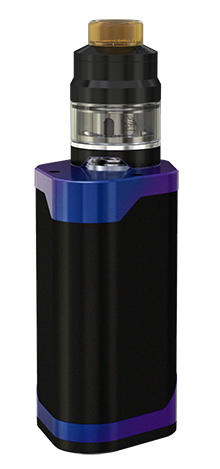

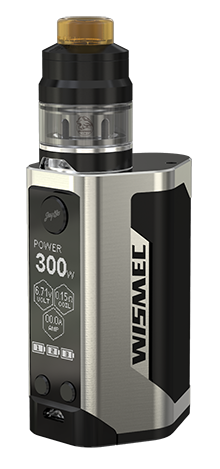

Reuleaux RX GEN3, the third generation of Reuleaux box mod, is smaller, lighter and more ergonomic than previous versions. Having a big 1.3inch OLED screen and brand-new interface, the GEN3 comes with three replaceable 18650 cells whose maximum output can reach 300W. Moreover, the latest bespoke firmware tailor made for the RX series will make GEN3 always up-to-date. The GNOME atomizer that packs the new WM coils for optimal flavor and retractable top design for easy filling can perfectly pair with GEN3 in terms of appearance and performance.
Parameter
Size: 39.3*48.8*113.7mm
Weight: 197.7g
E-liquid Capacity: 2ml/4ml
Thread Type: 510 spring loaded connector
Cell Type: high-rate 18650 cell (discharging current should be above 25A)
Output Mode: VW/TC-Ni/TC-Ti/TC-SS/TCR mode
Output Wattage: 1-300W
Resistance Range: 0.05-1.5ohm for TC modes
0.1-3.5ohm for VW mode
Temperature Range: 100-315°C/200-600°F (TC modes)
Maximum Charging Current: 2A
Maximum Output Current: 50A
Output Voltage Range: 0.5-9V
Weight: 197.7g
E-liquid Capacity: 2ml/4ml
Thread Type: 510 spring loaded connector
Cell Type: high-rate 18650 cell (discharging current should be above 25A)
Output Mode: VW/TC-Ni/TC-Ti/TC-SS/TCR mode
Output Wattage: 1-300W
Resistance Range: 0.05-1.5ohm for TC modes
0.1-3.5ohm for VW mode
Temperature Range: 100-315°C/200-600°F (TC modes)
Maximum Charging Current: 2A
Maximum Output Current: 50A
Output Voltage Range: 0.5-9V
EU Edition
For the EU edition, please unplug the mouthpiece firstly, and then push the top cap.
Fill the liquid into the tank through the hole slowly. After filling, push the top cap to close the hole.
Fill the liquid into the tank through the hole slowly. After filling, push the top cap to close the hole.
Main Features:
Tiniest Triple 18650 Mod with 300W Max Output: Powered by triple replaceable 18650 cells, RX GEN3 with the tiniest size is capable of outputting 300W power, providing you with large vapor.

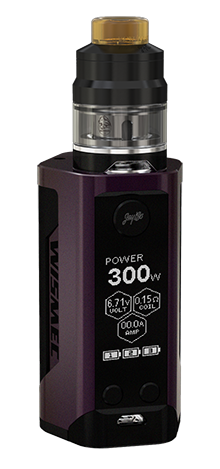

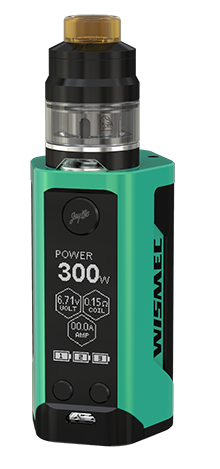

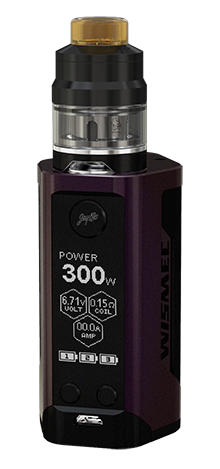

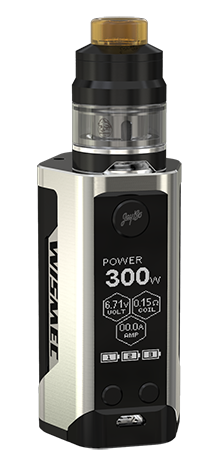

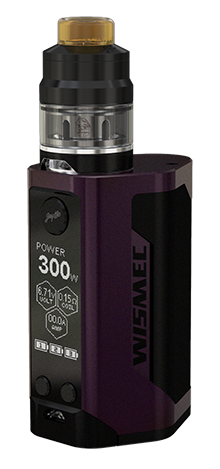

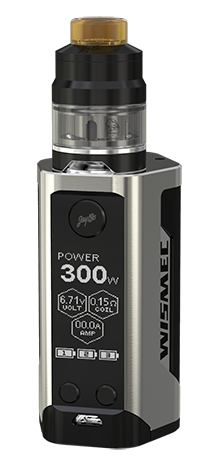

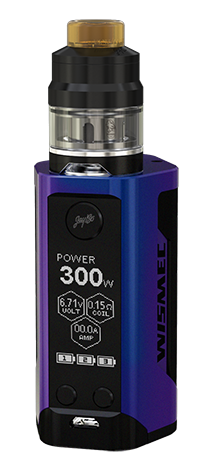

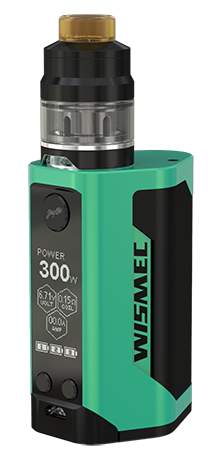

1.3inch Large Display with User-friendly Interface: Coming with a 1.3inch large screen, RX GEN3 presents all parameters in a more clear way.
All-new WM Coils for Huge Vapor and Optimal Flavor: The GNOME equips with brand-new WM coils: WM02 Dual 0.15ohm Head and WM03 Triple 0.2ohm Head, providing you with different vaping experience.
WM02 Dual 0.15ohm Head
Rating: 30-70W
Best wattage: 45-60W
WM03 Triple 0.2ohm Head
Rating: 40-130W
Best wattage: 70-90W
WM01 Single 0.4ohm Head
Rating: 40-80W
Best wattage: 55-65W
(optional accessory)
WM RBA
(optional accessory)
Offering Two Drip Tips: The GNOME provides two drip trips for you, the short one and the long one, which will bring you perfect vaping enjoyment.
Dual Circuit Protection & Reverse Polarity Protection: Reverse polarity protection is effectively achieved by the application of special battery anti reverse circuit in the board. And the dual circuit protection systems make the RX GEN3 much safe and reliable.
Detachable Structure for Easy Cleaning: All the pats of GNOME can be detached and reassembled, bringing much convenience in cleaning it.
Flip-open Battery Cover for Easy Exchange: The flip-open cover with ventilation holes is designed for easier cells replacement and better heat dissipation.
Upgradeable Firmware with Preheat Function: Coming with the upgradeable firmware, your RX GEN3 will be always up-to-date.
Charging
It is better to take out the cells and charge them through external charger.
You can also charge the device by connecting it with a computer or a wall adapter via USB cable
Standard Configuration
1*Reuleaux RX GEN3 (no cells)
1*GNOME
1*WM02 Dual 0.15ohm Head
1*WM03 Triple 0.2ohm Head
1*QC USB Cable
2*User Manual
2*Warning Card
Spare Parts
